PLASTCRETE FOR TRAFFICABLE CONCRETE REPAIR
Applied concrete floor on a parking lot was frozen during of next night. The surface of the floor was severely disintegrated on a depth at
15 mm with easy removable concrete layers. The uniqueness of this project is in repair of damaged concrete by thin concrete layers at
10 mm to 40 mm. Heavy trafficable area required highest possible adhesion of that layer to the damaged concrete, compressive strength at
35 MPa, and water impermeability no less than W8. Our mix design of PLASTCRETE exceeded all expectations of contractor and customer.
Below is a technique of repair of damaged concrete.
PLASTCRETE MIX DESIGN
MATERIALS KG M3 NOTICE
Ordinary Portland Cement 200 0.063
Gravel D =2.5 mm ÷ 3 mm 250 0.1058 Not larger than D=3.5 mm
Coarse Sand #16 550 0.2275
KALMATRON KF-A 5 0.005
Water 95 0.095 W/C = 0.475
Total 1100 0.496 D = 2222 Kg/m3
ESSENTIALS AND CURING
1. Do not use curing and heating/cooling techniques.
2. After application, do not provide curing procedure and do not use curing compounds.
3. Do not cover fresh PLASTCRETE with any films or blankets.
4. Achieved results: Compressive Strength at 50 MPa
Tensile Strength at 11 MPa
Water impermeability at W12

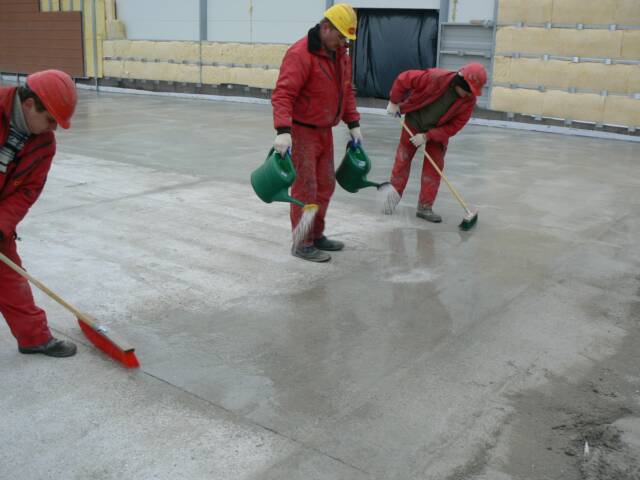

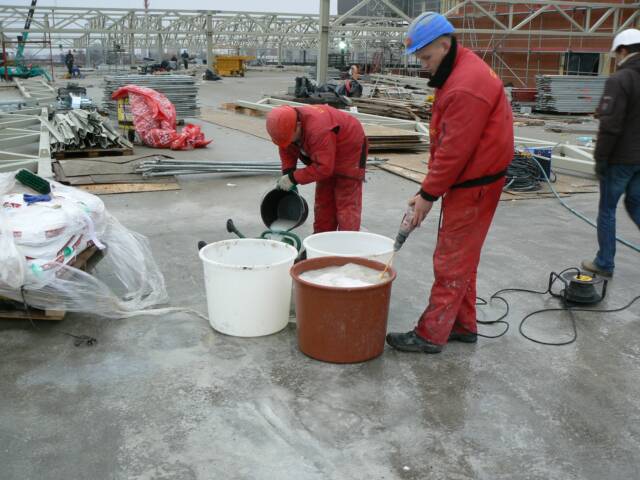

________2. Spray diluted slurry of KALMATRON® KF-G on damaged and frozen concrete surface by any convenient
technique. It provides deicing of repaired to be concrete and chemical adhesion with new concrete layer.
Consumption of KF-G spray is .025 GL/SF or 1 Liter per 1 m2.
________3. Prepare PLASTCRETE in accordance with mix design.
________4. Apply PLASTCRETE after 30 minutes.
ESSENTIAL: Preparation of FROZEN concrete surface for repair by flame heating is a history now.
Just spray KALMATRON® KF-G.

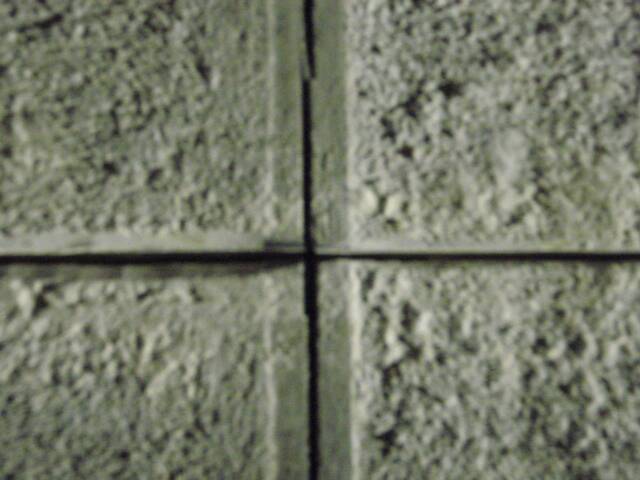

All joints were restored by 10 mm or 1/2" thick layer of PLASTCRETE to repeat initial design of parking lot.
PLASTCRETE INSTALLATION
1. Prepared first batch must be no smaller than 250 Kg or 550 Lbs.
2. Turn on mixer no less than for 1 minute.
3. First rotations could be hard, then don’t panic and continue mixing until 1 minute expires.
4. In a case of a batch stiffness use flat-plate vibrators for PLASTCRETE flattering.
5. Continue mixing during of application. Do not stop mixer.

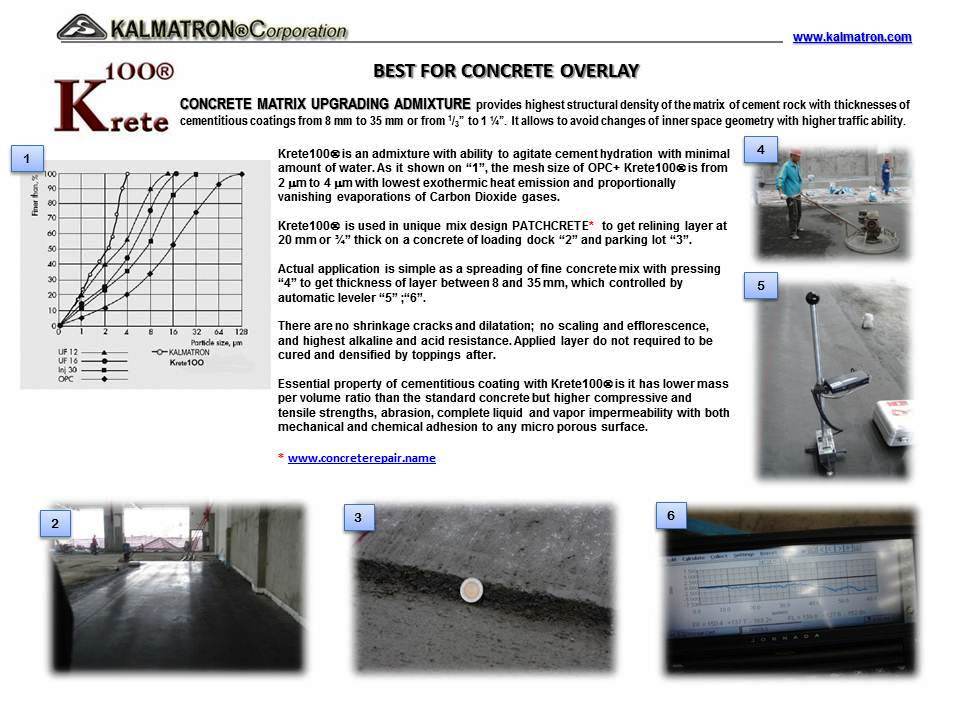

6. Apply layer from 20 mm to 40 mm or 3/4" to 1 3/4" thick only. For thinner layers apply
admixture of Krete100®.
Note: for more information visit website www.parkingconcrete.com
CONCRETE PARKING LOT REPAIR WITH KALMATRON® KF-A
USA patent #5,728,208
